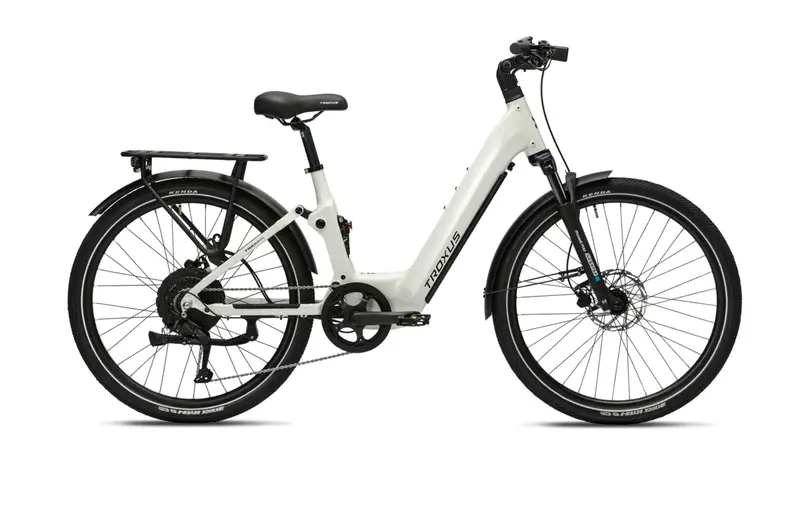

Troxus Trax SUV Dual Suspension Commuter Electric Bike
Meet the Trax SUV 15/750—a premium dual-suspension commuter built for comfort, control, and confidence. Whether you’re cruising suburban streets or taking the scenic way home, this powerhouse offers smooth rides, powerful performance, and a sleek, SUV-inspired design. It’s luxury on two wheels—without the fuel bill.
E-system
Motor
Bafang® 48V/750W Hub-Drive Motor, 85Nm Peak Torque
Battery
UL-2771 Certified / Internal / Removable / Lithium Ion, 48V/15Ah (720Wh) with Samsung® Cells
Display
Stem-Integrated Color Display, Bluetooth, w/ Turn Signals, w/ Multi-Function Remote
Throttle
Thumb Throttle on Handlebar
Sensor
Switchable Torque And Cadence Sensor Modes
Pedal Assist
0~5 Level Pedal Assist
Charger
2A / 100-240V Input / 54.6V Output
Lights
80 Lux Front Light, Rear Light w/ Turn & Hazard Signals
Controller
48Vx22A/12V
Components
Frame
6061-T6 Aluminum Frame, Dual Suspension, Travel 75mm
Fork
Suntour® Front Suspension Fork, MOBIE-A32, 75mm Travel
Chain
KMC® CUES 9-Spd
Crankset
Aluminum, 46T, w/ Single Alloy Chainguard, Square Taper, 170mm
Rear Derailleur
Shimano® CUES, 9-Speed
Cassette
Shimano® 9-Speed, 11-36T
Shifter
Shimano® CUES 9-Speed
Bottom Bracket Set
Square Taper Sealed Bearings, Torque & Cadence Sensors Included
Tires
KENDA® 27.5×2.4″, w/ Reflective Stripes
Front Hub
Sealed Bearing, O.L.D. 100mm, 15mm Thru-Axle
Rear Hub
Bafang® 48V 750W/ 28 MPH. 85Nm
Rims
Alloy, Double Wall Front & Rear, 36H, w/ Eyelets
Spokes
Stainless 14G. Front / 13G. Rear
Brakes
Tektro® Hydraulic, w/ Brake Sensors
Rotors
180mm / 180mm
Saddle
Troxus Comfort / 200mm Wide
Seat Post
Alloy, 30.9×200 / 250mm
Seat-Post Clamp
Alloy, 35mm w/ Quick Release
Stem
Alloy, Forged, Adjustable, w/ Integrated Display / Ext. 110mm, w/ Internal Cable Routing
Handlebar
Alloy, 31.8mmx680mm Wide, 25mm Rise, 9 Deg. Backsweep
Grips
Ergonomic Comfort
Pedals
9/16″ Alloy Platform with Reflectors
Headset
ICR Type, Threadless, Internal 57/62mm, w/ Internal Cable Routing
Rear Shock
DNM AO-38RC Air Shock, 165x35mm Travel
Speed & Range & Weight & Supports
Max Speed
Max Speed Up To 20 MPH on Throttle / Up To 28 MPH on Pedal Assist
Range
Up To 70 Miles Per Charge
Weight Limit
Maximum Load: 300 lbs. / Rider: 245 Lbs. / Rear Rack: 55 lbs.
Net Weight
75 lbs.
Rack
Lightweight Semi-Integrated Alloy Rear Model / MIK-Compatible Rear Rack
Fenders
Alloy, 27.5″x2.4″, Full Coverage
Kickstand
Adjustable Side Kickstand
Packaged
Above All Accessories Are Included.
WARRANTY: 5 Year
SIZE: Fits 5’10 – 6’4
