Description

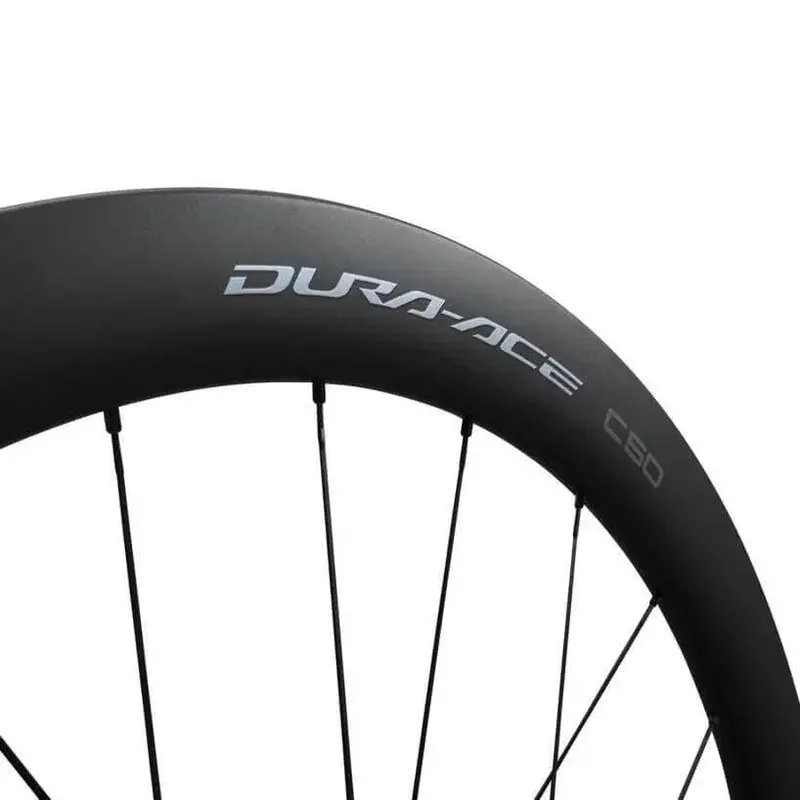

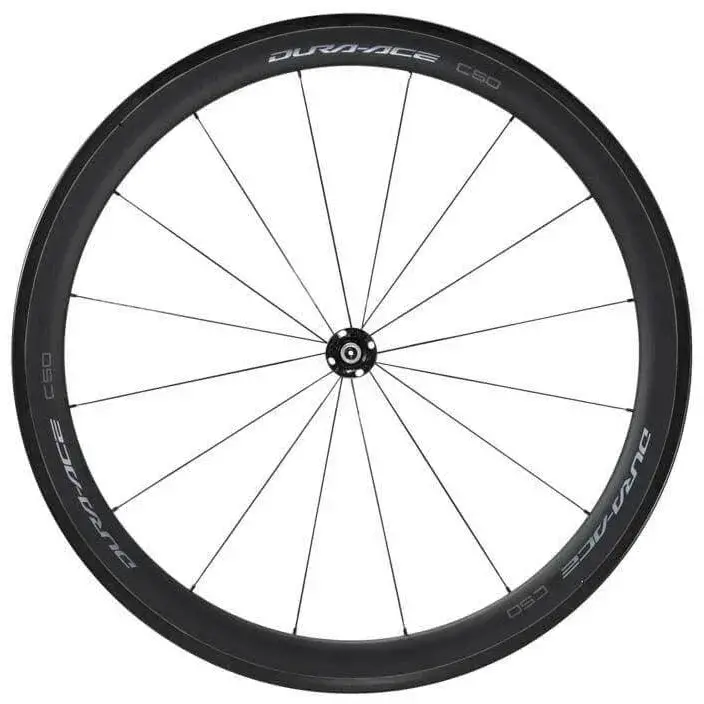

Shimano Dura-Ace WH-R9270-C50-TL C50 Disc Front Wheel
The all-rounder of the new Shimano Dura-ACE wheel lineup, the Shimano Dura-Ace C50 Tubeless Disc Front wheel is both lighter than the previous C40 model and nearly as aerodynamic as the previous C60. It’s a wheelset at home in a wide range of conditions. From time trials to criteriums, on rolling terrain or attempting a personal best, the new C50 is the ideal wheel for spirited road riding.
The perfect blend of low weight and aerodynamic performance, the all-new Dura-Ace C50 Tubeless Disc Front wheel features an updated all-carbon tubeless rim and new hub design that drops weight while enhancing rigidity.
- All-round tubeless wheels with balanced aerodynamics and lightweight materials
- 50 mm height full carbon rim
- Internal rim width: 21 mm
Specifications
| MODEL NO | WH-R9270-C50-TL-F |
| SERIES | DURA-ACE R9200 Series |
| Average weight | 674 |
| Spokes_Straight pull | ✔ |
| Brake type | CENTER LOCK disc brake |
| Axle fixing method | 12 mm E-THRU |
| O.L.D. (mm) | 100 |
| Thru axle (length x inner diameter ; mm)_100 x 12 | ✔ |
| D2 rim | ✔ |
| Disc mount_140 mm Disc brake rotor compatible | ✔ |
| Disc mount_CENTER LOCK | ✔ |
| Front/Rear | Front |
| Reflector_AS | CATEYE RR-550-WUW SW |
| Reflector_DIN | CATEYE RR-317-WUA SW |
| Reflector_JIS/CPSC | CATEYE RR-550-WUW SW |
| Rim_Height (mm) | 50 |
| Rim_Requires rim tape | ✔ |
| Seal_Hub | Contact |
| Spokes_Bladed | ✔ |
| Spokes_Butted | ✔ |
| Spokes_Number | 24 |
| Tire_Recommended size | 25-622 – 32-622 |
| Tire_Type | Tubeless |
| Wheel Size | 622 x 21C |
| Color_1 Hub shell | Series Color |
| Model name | WH-R9270-C50-TL |
| Rim_External width (mm) | 28 |
| Rim_Internal width (mm) | 21 |
| Spokes_Diameter (mm) | 2.0-1.5-2.0 |
| Specification | F |
