Description

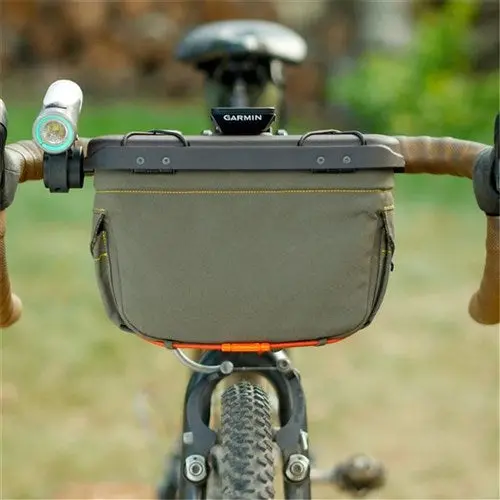

Route Werks Pack The Handlebar Bag Accessories

Bike Mount

**Included with each Handlebar Bag.
The base of the Route Werks Ecosystem. Fits 31.8mm, round handlebars or 26.0 & 25.4 handlebars with our Bike Mount Adaptors (sold separately)

Description

Our ultra-compact proprietary mount & the heart of the Route Werks System. The Bike Mount is designed to fit 31.8mm handlebars out of the box. Add our Bike Mount Adaptors if you have 26.0 or 25.4mm handlebars (sold separately). Purchase an additional Bike Mount to more easily share a single Handlebar Bag or Out Front Mount between several bikes.

Included

• (1) Bike Mount (fits 31.8mm, round handlebars)
• (4) M4 x 0.7 x 18mm stainless steel, nylon patch SHCS, black finish

Out Front Mount

Going for a quick ride? The Out Front Mount creates the same familiar access to all your important tech in a compact and rugged design.

Description

Are you just going for a quick ride? The Out Front Mount creates the same familiar access to all your important tech in a compact and rugged design.

Using the same Bike Mount & Bar Fly Tech Adaptor or Quad Lock Mount as your Handlebar Bag,  quick, tool-free swaps between long and short rides are now a reality. Add the Action Mount to your Out Front Mount for limitless accessory options with anything using an action-cam 3-prong mount.

**Requires a Bike Mount to attach to your bars (sold separately). If you already own Handlebar Bag, then you are all set.

Included

• (1) red/black anodized aluminum Out Front Mount
• (2) M4 x 0.7 x 8mm stainless steel, nylon patch FHCS, black finish

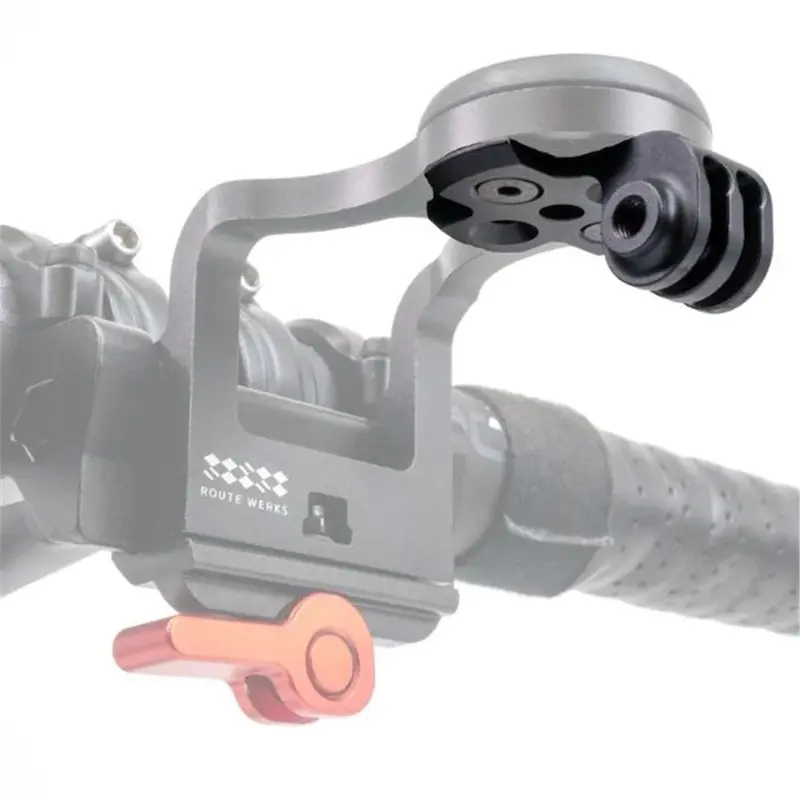

Action Mount

Don’t miss a moment of your amazing adventures or light up a nighttime ride using the Action Mount. Sturdy 3-prong design holds your light, action camera or 3-prong accessory on the Out Front Mount or Handlebar Bag.

Description

Capture your amazing adventures or light up a ride using the Action Mount.

This sturdy aluminum mount makes an amazing companion for your Handlebar Bag or Out Front Mount. Allows attachment of most lights or cameras that use a 3-prong style mount.
**Due to variations in light and camera system mount dimensions, some shimming may be required.

Included

• (1) 3-prong Action Mount
• (2) M4 x 0.7 x 8mm stainless steel, nylon patch FHCS, black finish
• (1) M5 x 0.8 x 16mm stainless steel, nylon patch BHCS, black finish

Handlebar Stub

The Handlebar Stub allows you to carry most bar-mounted accessories directly on The Handlebar Bag. Each bag accepts two Handlebar Stubs. See install notes in the description below.

Description

Handlebars are for your hands!

Our machined aluminum Handlebar Stub allows you to carry most bar-mounted accessories directly on The Handlebar Bag. Each bag accepts two Handlebar Stubs via the M5 threads on each side of the bag.

Install notes

• Recommended torque: 6-8Nm, using a square-end, 3mm hex key.

• Align wings on the Handlebar Stub with the slots on the Accessory Rails.

*Not for use with out-front style mounts. Usage will void the warranty.

Included

• (1) Handlebar Stub (31.8mm diameter)
• (1) M5 x 0.8 x 30mm stainless steel, nylon patch FHCS, black finish

Bar Fly Adaptor

**Included with each Handlebar Bag
Bolts directly to the top of The Handlebar Bag to accept Bar Fly Tech Adaptors & Quad Lock Integrated Mounts.

Description

**Included with each Handlebar Bag.
This adapter plate bolts directly to the top of The Handlebar Bag to accept Bar Fly Tech Adaptors (Garmin & Wahoo sold separately on our site) & Quad Lock Integrated Mounts.

Included

• (1) red anodized aluminum RW to Bar Fly Plate
• (2) M3 x 0.5 x 8mm stainless steel, nylon patch FHCS, black finish
• (2) 2.5mm ID x 5.5mm OD metric o-ring
• (2) M4 x 0.7 x 8mm stainless steel, nylon patch FHCS, black finish

K-Edge Adaptor

Bolts directly to the lid of The Handlebar Bag to accept K-Edge-style computer mount adapters.

Description

This plate bolts directly to the lid of The Handlebar Bag to accept K-Edge-style computer mount adapters.

*Requires K-Edge Computer mount adapter from K-Edge. Compatible options are available for Garmin, Wahoo & Sigma cycling computers.

**Not compatible with the Out Front Mount

Included

• (1) blue anodized aluminum RW to K-Edge Plate
• (2) M3 x 0.5 x 6mm stainless steel, nylon patch FHCS, black finish
• (2) 2.5mm ID x 5.5mm OD metric o-ring
