REDARC Smart Start Battery Isolator & Wiring Kit 12V – SBI12KIT

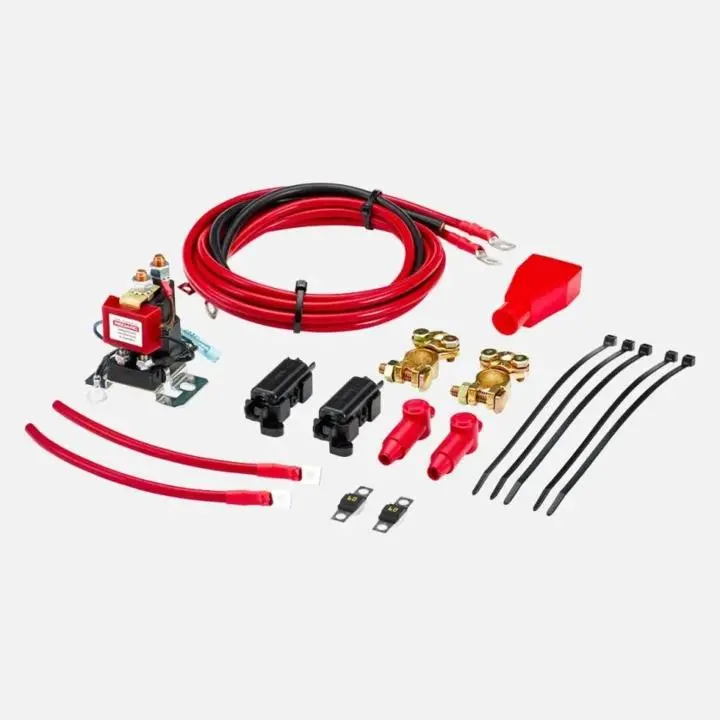

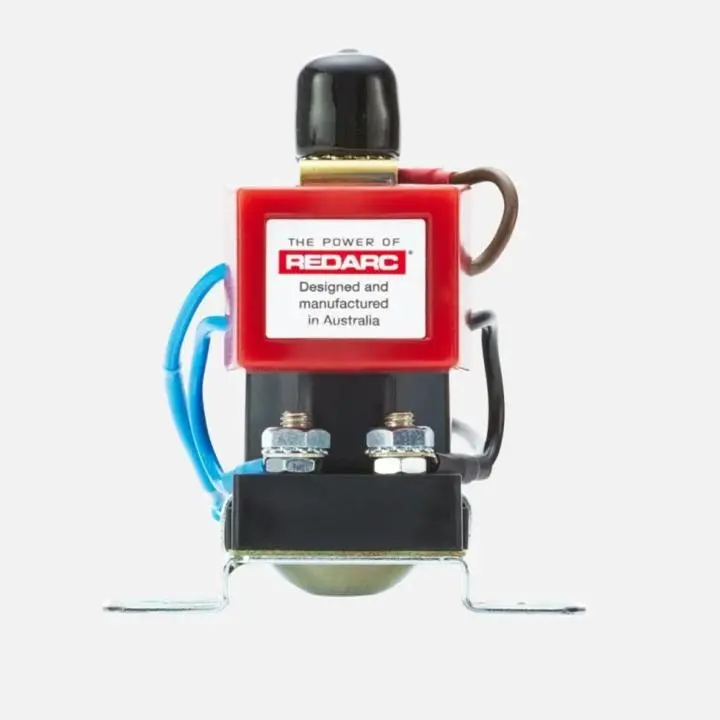

REDARC Dual Sensing Smart Start Battery Isolator 12V 100A – SBI12D. A kit that includes Smart Start® Dual Battery Isolator and Wiring Kit (SBI12KIT) comes with everything required to install your Smart Start® Dual Battery Isolator including the Smart Start® itself. Requires no crimping or soldering, it’s just plug and play, making it ideal for a DIYer. Has a MTA 60 amp fuses and fuse holders with the corresponding ring terminals already attached to the wires.

Features:

• Prevents your secondary battery draining your main battery.
• Significantly extends battery life saving you money.
• Can be used in automotive and marine applications.
• Suitable for harsh environments.
• Easy to install complete kit.
• Full instruction booklet.
• 2 year warranty.

Specifications:

• Max. Inrush current: 400A.
• Max. Continuous current: 100A.
• Turn on voltage: 13.2V.
• Turn off voltage: 12.7V.
• Turn on delay: 5 seconds.
• Turn off delay: 10 seconds.
• Standby current: <5mA.
• System voltage: 12V.
• Output voltage: 12V DC.
• Input fuse rating: 100A.
• Output fuse rating: 100A.

Dimensions:

• Height (mm): 70
• Width (mm): 75
• Depth/Length (mm): 80
• Weight (g): 200 (SBI only)
