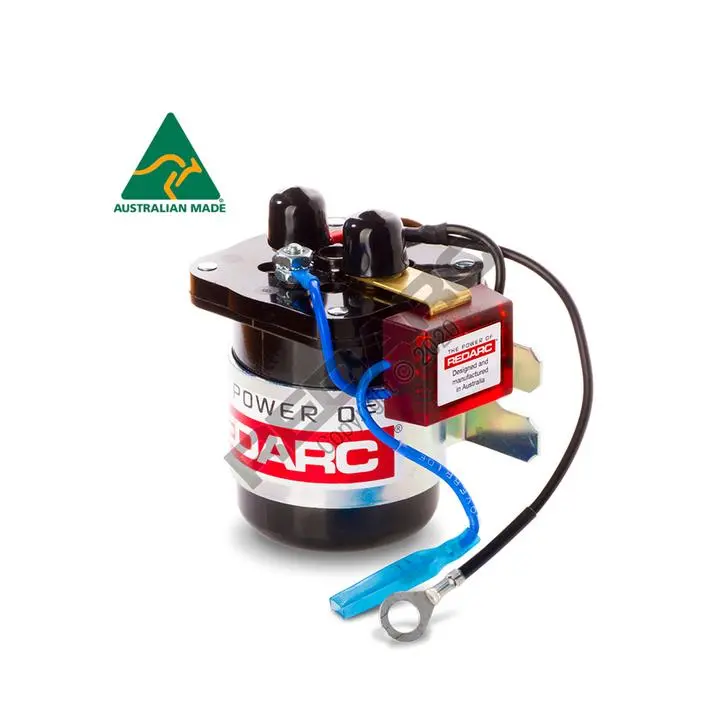

REDARC Smart Start SBI 12V 200A – SBI212

REDARC Smart Start SBI 12V 200A – SBI212. A battery isolator used as a solenoid priority system to protect that start battery from excessive discharge while the auxiliary battery is supplying non-essential loads. Provides 12 volt DC incorporating 200A of continuous ratings, the battery isolator is designed for extremely heavy-duty operations. Primarily used in commercial vehicle dual battery systems, it incorporates electronic components that will prevent the solenoid from generating high voltage transients. It is better than a diode battery isolator due to the voltage drop associated with diode type isolation. Has a a low standby current draw and sophisticated fault detection and LED indication of operation to warn the user of faults including over-voltage, voltage drop and excessive current draw conditions. For installation of smart battery isolators, use of quality fuse kits is recommended.

Features:

• Overmould design.
• Compact in size and easy to install.
• Silver contacts for longer life and suitable for marine applications.
• Power saving technology.
• Fault indication.
• Fully surge protected.
• 2 year warranty.

Specifications:

• Max. Inrush current: 600A.
• Max. Continuous current: 200A.
• Turn on voltage: 13.2V.
• Turn off voltage: 12.7V.
• Turn on delay: 5 seconds.
• Turn off delay: 10 seconds.
• Standby current: <5mA.
• System voltage: 12V.
• Output voltage: 12V DC.
• Input fuse rating: 200A.
• Output fuse rating: 200A.

Dimensions:

• Height (mm): 90
• Width (mm): 95
• Depth/Length (mm): 100
• Weight (g): 600
