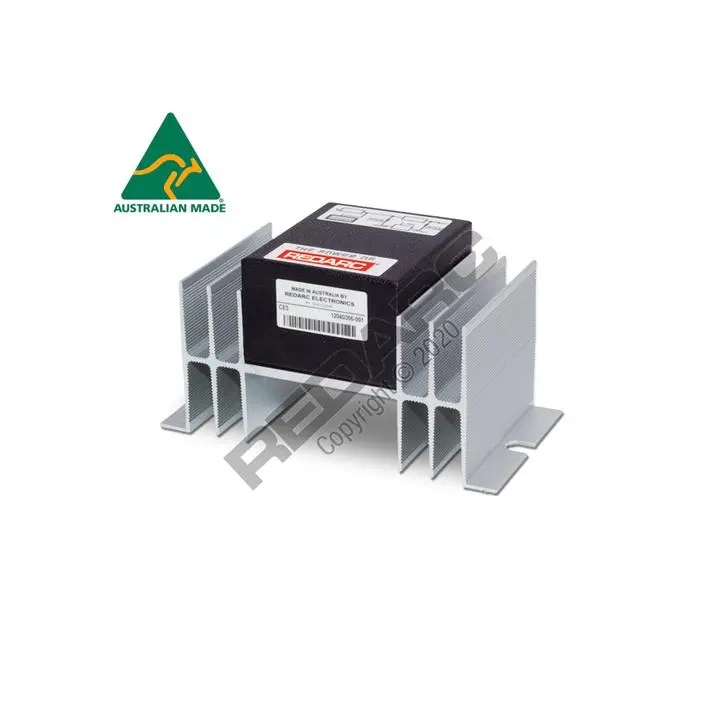

REDARC 40A Charge Equalizer – CE40S2

REDARC 40A Charge Equalizer – CE40S2. A 40A Charge Equaliser allows 12 volts to be ‘tapped’ from the centre of a series-connected, two battery, 24 volt DC electrical system while still ensuring an equal charge across the two batteries. Ideal when space/cost prohibits installation of a separate 12 volt battery. Provides improved functionality with reduced installation complexity and features input isolation, negating the need for an input relay or isolator. A high peak current capability and fast transient response suited for loads requiring a safe, clean and stable 12 volt supply. Has the advantage of drawing power from a battery rather than through a current limited device, such as a voltage reducer. This allows for a much larger peak current draw.

Features:

• Designed to keep your 24 volt batteries equally charged.
• Reduce down time and running costs by extending battery life.
• Peak load currents are limited only by the battery.
• Designed for Australia’s harsh conditions.
• Based on the award winning BCDC platform.
• High peak current capability.
• Fast transient response.
• Sealed and suited for commercial applications.
• 2 year warranty.

Specifications:

• Continuous rating: 40A.
• No load current: <100mA.
• Standby current: <10mA.
• Operating temperature: -20°C to 80°C.
• Input voltage: 20 – 32V.
• Output voltage: 6 – 16V.
• Max. rated output current: 40A.
• Input fuse rating: 50A (Not supplied).
• Output fuse rating: 50A (Not supplied).

Dimensions:

• Height (mm): 37
• Width (mm): 120
• Depth/Length (mm): 150
• Weight (g): 680
