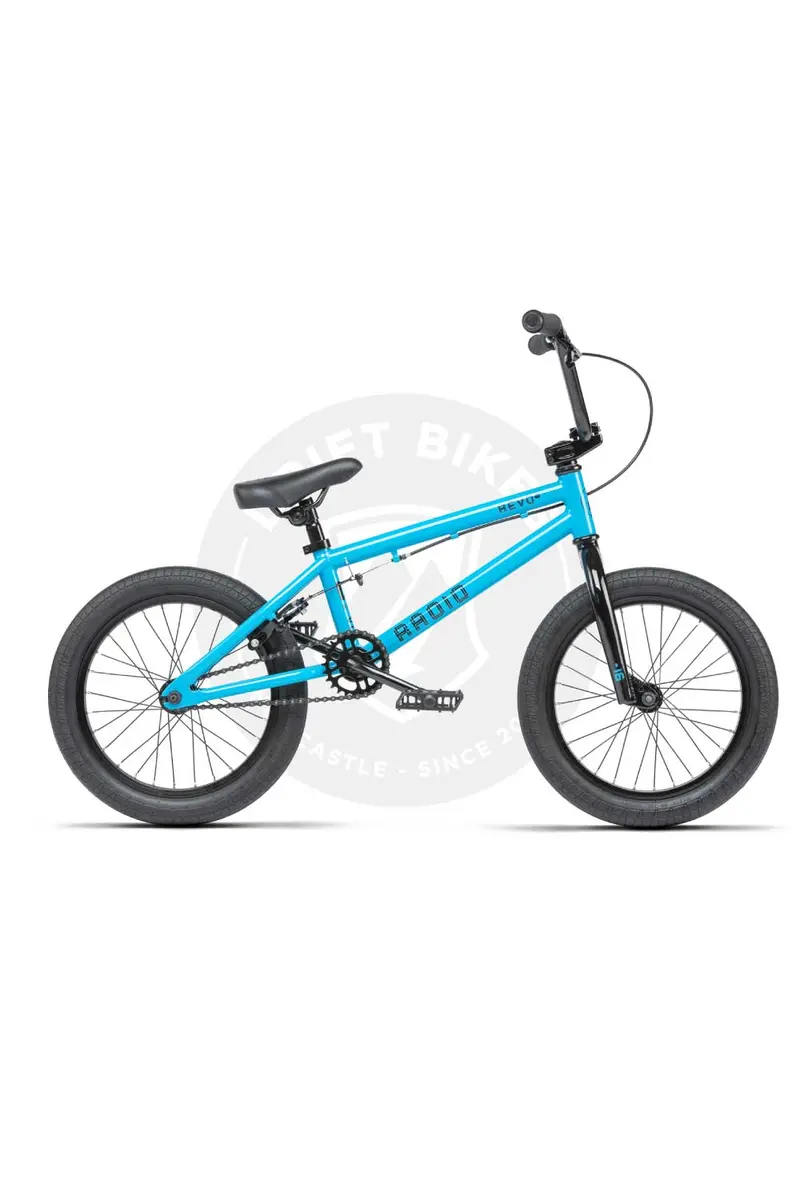

RADIO 2023 Revo 16″ BMX

Pickup in-store or contactless delivery available:

Pickup in-store (choose at checkout):
To reserve this bike we require payment in full. Once your order is processed a member of the Drift Bikes team will be in touch regarding eta for the contactless pickup of your new bike.

Delivery available (choose at checkout):

Once your order is processed a member of the Drift Bikes team will be in touch regarding eta for the contactless delivery of your new bike.

About This Bike:

The Revo line allows you to get your first taste of the bmx world on a solid and well-designed bike. Radio took extra care when hand selecting the components on these bikes to ensure that the bike could be ridden straight out of the box, simple to work on and maintain, but also easily upgradable over time. Despite the low price-point, the Revo is packed full of great features like 25-9 gearing and short/responsive pro-inspired geometry. The Revo 16″ is a scaled-down version of the 20″. Radio designed the Revo to follow a similar responsive geometry set as our dice 16″, allowing the younger rider to really put this bike through its paces.  Despite the low price point, you’ll find plenty of neat details on the Revo 16″ including the tapered fork blades and even an alloy seat post to help shred the grams.
Frame – Radio “revo 16” frame, full 1020 hi-ten Fork – Radio “rookie 16” fork, hi-ten Handlebar – Radio “revo 16” bar, hi-ten Grips – Radio “junior” grips, flangeless, 130mm Stem – Salt “junior” topload stem, 40mm reach Headset – FSA “a-head-set” loose ball Brake lever – Radio “junior 16” brake lever, alloy Brake – Radio “am” caliper brake, alloy, front / radio “am-u” u-brake, alloy, rear Crank – Radio “rookie” 1pc crank, forged, crmo, 127mm BB – USA size, loose ball Pedals – Radio “rookie” nylon pedals Chain – KMC “s1” chain Sprocket – Radio “rookie” sprocket, steel, 25t Driver – 9t, cassette Front hub – Radio “rookie” steel hub, lb, 28h Rear hub – Radio “rookie” cassette hub, steel, lb, 9t, 3/8″ axle, 28h Front rim – Salt “am” rim, straight single wall, 28h Rear rim – Salt “am” rim, straight single wall, 28h Seat – Radio “century” railed seat Seat post – Radio ‘am” alloy seatpost Seat clamp – Radio slim alloy seat clamp Tires – Radio “rookie” tires, 16″x2.1″, front & rear Weight – 9.95kg / 21.94lbs
Frame geometry Top tube length – 16″ Chain stay length – 11.2″ Head tube angle – 75° Seat tube angle – 71.5° Bottom bracket height – 9.75″ Standover height – 6.6″
Handlebar geometry Rise – 6.8″ Width – 23.6″ Backsweep – 10° Upsweep – 3°
