Description

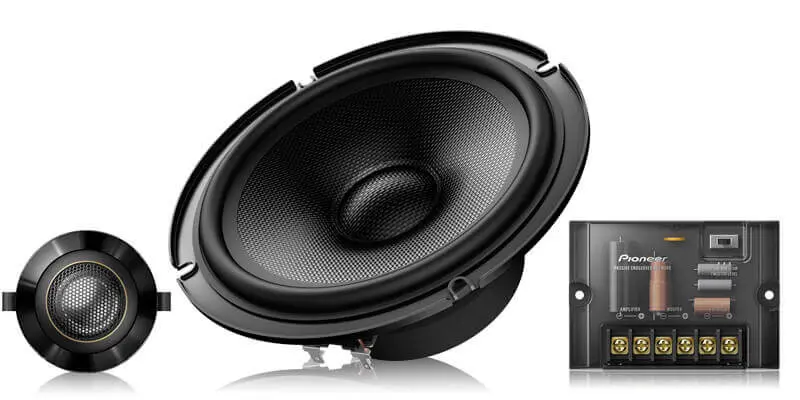

Pioneer TS-Z65CH

NEW! 6.5” 2-Way Component System

• 29mm Aluminum Alloy Dome Tweeter with Vertex Drive System
• Twaron^® Aramid Fiber + Cellulose Fiber Dual Layer Cone Construction
• Oversized Magnet and Powerful Motor Assembly for Accurate Bass
• Designed for Hi-Res Audio

Z FULL RANGE, No Compromises

The Z is based on highly advanced technology developed by Pioneer, employing carefully selected materials and parts, benefiting from our decades of automotive loudspeaker design theory and testing ability.
Following Pioneer’s OPEN & SMOOTH™ sound concept, the Z series of automotive loudspeakers features smooth off-axial frequency response, superior directivity and extended frequency range engineered specifically to produce dynamic, accurate sound quality for the car. The result is a purity of sound that achieves unprecedented audio artistry.

SYSTEM

System Type2-way Component
Sound Pressure Level (Sensitivity)85 dB (± 1.5dB)
Frequency Range30 Hz to 96 kHz
Hi-Res Certfied
Continuous Power Handling (RMS)110 Watts
Maximum Peak Power Handling330 Watts
Nominal Impedance4 ohms

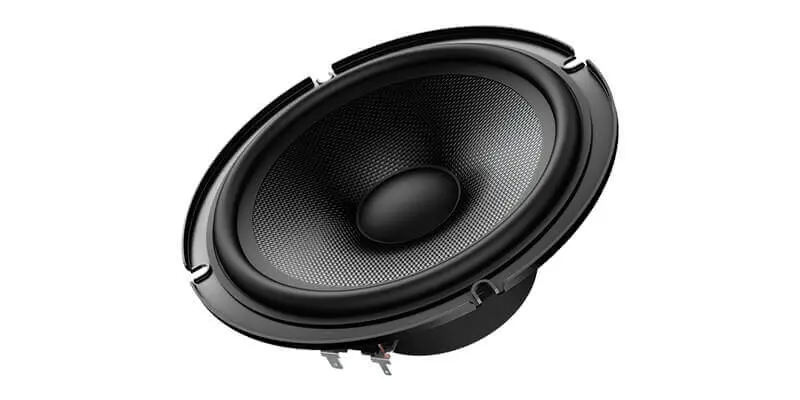

WOOFER

Diameter6.5”
Cone MaterialTwaron Aramid Fiber + Cellulose Fiber Dual Layer
Center Cap MaterialTwaron Aramid Fiber
Surround MaterialButyl Rubber
Basket MaterialStamped Steel
Magnet MaterialFerrite
Magnet Weight15.2 oz
Mounting Depth2.6”

TWEETER

TypeBalanced Dome
Diameter29mm
Diaphragm MaterialAluminum
Magnet MaterialNeodymium
Magnet Weight6.4 g
Swivel TypeYes

CROSSOVER NETWORK

Tweeter Level Adjustability-3dB / 0dB / +3dB
Crossover Frequency1900 Hz
