Description

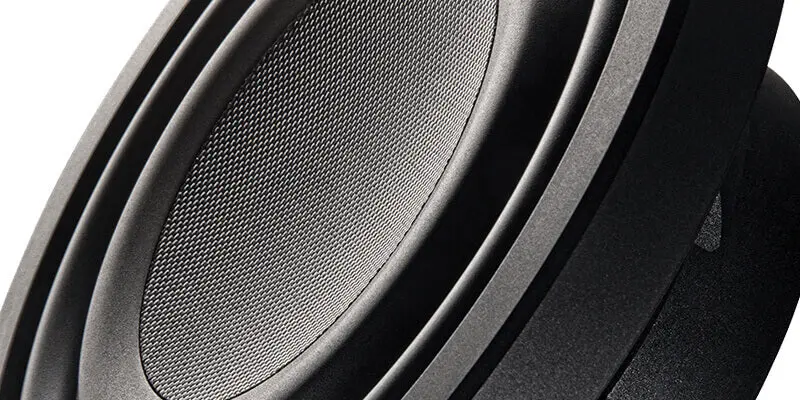

Pioneer TS-Z10LS4

NEW! 10″Single 4 ohms Voice Coil Subwoofer

• Twaron^® Aramid Fiber + Cellulose Fiber Dual Layer Cone Construction
• Extended Voice Coil, Dual Spider Design for Increased Linearity and High Excursion
• Shallow Basket, Small Enclosure Design for Sound Optimization and Installation Flexibility
• Designed for Hi-Res Audio

Z Subwoofer, THE PURSUIT OF PERFECT BASS

The Z subwoofer is based on the same highly advanced technology as the Z full range loudspeakers to create seamlessly integrated musical perfection – fast, detailed and extended bass with tremendous impact and clarity.
Combining high fidelity and high output in a compact, shallow design, the Z subwoofer offers virtually unlimited installation flexibility. As a result, the placement of the Z subwoofer can be optimized for sound quality and bass reinforcement, unlike conventional subwoofers that must be installed simply where they physically fit. Balance, speed, power and bass extension – the ultimate combination for low-frequency nirvana.

SYSTEM

System TypeSubwoofer
Sound Pressure Level (Sensitivity)81dB (+- 1.5dB)
Frequency Range20 Hz to 3.8 kHz
Hi-Res Certfied
Continuous Power Handling (RMS)400 Watts
Maximum Peak Power Handling1300 Watts
Nominal Impedance4 ohms

WOOFER

Diameter10” oversized
Cone MaterialTwaron Aramid Fiber + Cellulose Fiber Dual Layer
Drive Cone MaterialInjection Molded Polypropylene (IMPP)
Surround MaterialButyl Rubber
Basket MaterialDie-cast Aluminum
Magnet MaterialFerrite
Magnet Weight67.7 oz
Mounting Depth3.2”
