Description

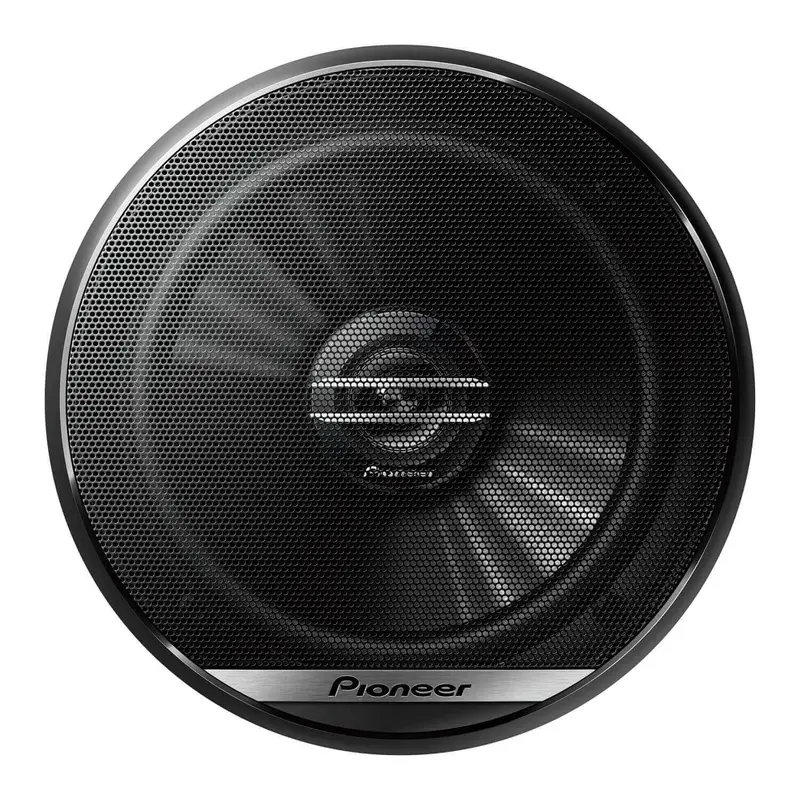

Pioneer TS-G1620F

NEW! 6-1/2″ 2-Way Coaxial Speaker 300W Max. / 40W Nom.

• 300 Watts Max. Power
• Injected Molded Polypropylene™ (IMPP) composite Cone Woofer
• Patented Pioneer P.F.S.S Spider
• 1-3/16″ Balanced Dome Tweeter

Installation and Sound to Suit Any Car

Our TS-G1620F speakers are excellent choices to replace a bad set of factory 6-1/2″ speakers. Their two-way design handles 300 watts max. power (40 watts nominal) and features Pioneer’s extremely strong and lightweight Injected Molded Polypropylene^™ (IMPP) Composite Cone Woofer for improved sensitivity and reduced distortion.

You don’t get just basic, run-of-the-mill features either. The conex damper delivers higher power handling and deeper bass, and the 1-3/16″ Balanced dome tweeter reproduces highs with great performance and musicality.

These speakers are designed with a shallow mounting depth for easy install into a wide variety of vehicles. Speaker grilles are not included.

P.F.S.S. Spider

Progressive Flex Suspension System supports the voice coil effectively by dampening the large cone vibration and enhancing linearity of sound reproduction. Its soft part makes movement smooth and reproduces clear sound and at excessive input, its hard part controls excessive vibration and prevents movement error.

GENERAL

Size6-1/2
DesignCoaxial 2-Way
Tweeter Design1-3/16″ Balanced Dome
Tweeter CompositionPolyethylene Terephthalate (PET)
Woofer CompositionInjected Molded Polypropylene™ (IMPP) with MICA
Woofer SurroundRubber Coated Cloth
Woofer Magnet CompositionFerrite
Warranty1 Year

INSTALLATION SPECIFICATION

Max. Music Power (Nominal)250W (35W)
Frequency Response31 Hz to 18 kHz
Sensitivity (1W/1 m)89 dB
Impedance4 Ohms
Mounting Depth1-3/4″ (in.)
Cut-Out Dimensions5″ (in.)
