Description

Pioneer TS-D65F

NEW! 6.5” 2-Way Coaxial System

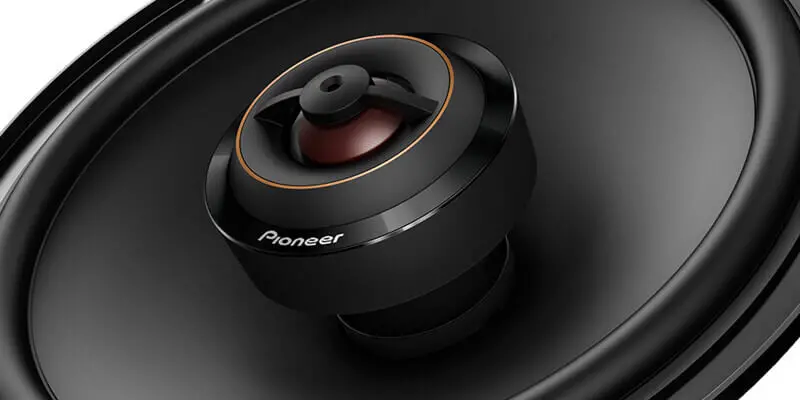

• 26mm Polyester Soft Dome Tweeter with Swivel Capability
• Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP) Cone Construction
• Universal Woofer Basket Design Expands Installation Flexibility for Maximum Bass and Sound Quality

D FULL RANGE, MUSIC FOR ALL

The D is a result of Pioneer’s automotive loudspeaker engineering experience and expertise, combining advanced design techniques with highly developed manufacturing capabilities.
Following Pioneer’s OPEN & SMOOTH sound concept, the D series of automotive loud speakers provides broad and balanced frequency response with a wide sound stage and amazing fidelity for the listener.

SYSTEM

System Type2-way Coaxial
Sound Pressure Level (Sensitivity)85dB (+- 1.5dB)
Frequency Range32 Hz to 49 kHz
Continuous Power Handling (RMS)90 Watts
Maximum Peak Power Handling270 Watts
Nominal Impedance4 ohms

WOOFER

Diameter6.5”
Cone MaterialAramid Fiber Interlaced Injection Molded Polypropylene (IMPP)
Surround MaterialButyl Rubber
Magnet MaterialFerrite
Magnet Weight11.3 oz

TWEETER

TypeSoft Dome
Diameter26mm
Diaphragm MaterialPolyester
Magnet MaterialNeodymium
Magnet Weight6.4 g
Swivel TypeYes
