Description

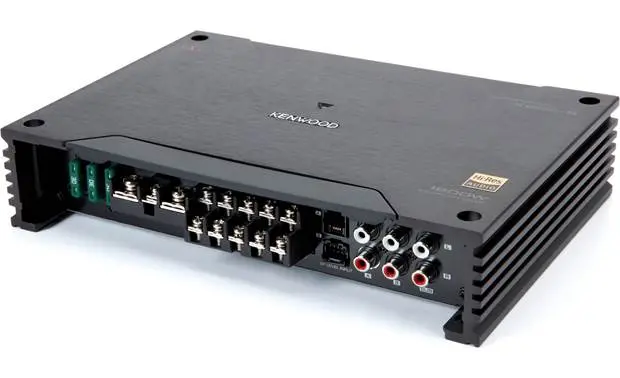

Kenwood X802-5 – Class D 5-Channel Power Amplifier

“X series” 5ch Amplifier with 75W x4 + 500W x1 @ 2ohms, 1600W Maximum Power

• Max Power 1600W
• Size (inch) (W) 9-3/4″ x (H) 2-1/16″ x (D) 6-5/8″
• Variable High & Low Pass Filter
• Bass Boost
• Optional Wired Remote Ready

Rich and Immersive High-Resolution Audio

High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic

Output Coil with Magnetic Shield

Prevents magnetic flux from radiating from the subwoofer’s coil, resulting in reduced noise and enhanced sound quality.

Sliding Terminal Cover

Detachable sliding terminal cover offers a sleek design and easier installation.

One-side Connection

All terminals and connections are on one side for easier installation and a cleaner look.

Optional Wired Level Control Ready

The optional KCA-RC01A wired remote level control allows you to easily adjust the subwoofer volume.

Product highlights:

• 5-channel car amplifier
  • 50 watts RMS x 4 + 300 watts x 1 at 4 ohms
  • 75 watts RMS x 4 + 500 watts RMS x 1 at 2 ohms
  • 150 watts RMS x 2 bridged at 4 ohms + 500 watts RMS x 1 at 2 ohms
• CTA-2006 compliant
• Class D amp technology
• separate variable high-pass filters on front and rear channels (50-200 Hz at 12 dB/octave)
• variable low-pass filter on subwoofer channel (50-200 Hz at 24 dB per octave)
• variable bass boost on sub channel (0-18 dB at 40 Hz)
