Description

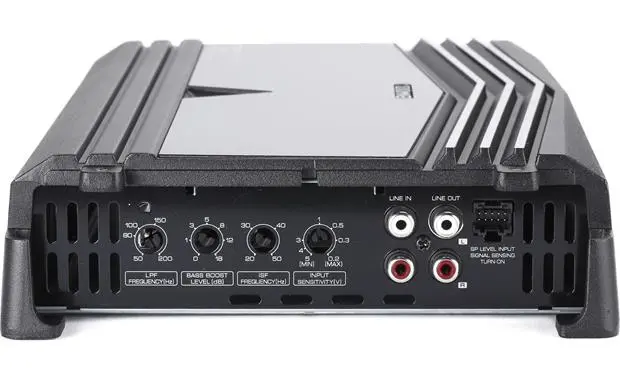

Kenwood KAC-9106D – Class D Mono Power Amplifier

Class D Mono Power Amplifier with Variable LPF, 2000W Max power

Max Power

2000W

Rated Input Power

4 ohms 500W x 1
2 ohms 1000W x 1

Specifications

Signal to Noise Ratio: 100 dB1
Low Pass Filter: 50 – 200 Hz (-24 dB / oct.)1
Infrasonic Filter: 20 – 50 Hz (-24 dB / oct.)1
Bass Boost: 40 Hz (0 – +18 dB)1
Size(inch): (W)13-3/16″ x (H)2-3/16″ x (D)7-9/16″1
Weight(lbs): 6.2

Product highlights:

• mono subwoofer amplifier
• 500 watts RMS x 1 at 4 ohms (1,000 watts x 1 at 2 ohms)
• CEA-2006 compliant
• Class D amp design
• variable low-pass filter (50-200 Hz at 24 dB per octave)
• bass boost (0-18 dB at 40 Hz )
• subsonic filter (20-50 Hz, 18 dB/octave )
• speaker-level inputs with signal sensing turn-on
• preamp inputs and outputs
• fuse rating: 40A x 3
• 4-gauge power and ground leads recommended — wiring and hardware not included with amplifier
• 13-3/16″W x 2-1/4″H x 7-5/8″D
• warranty: 1 year
