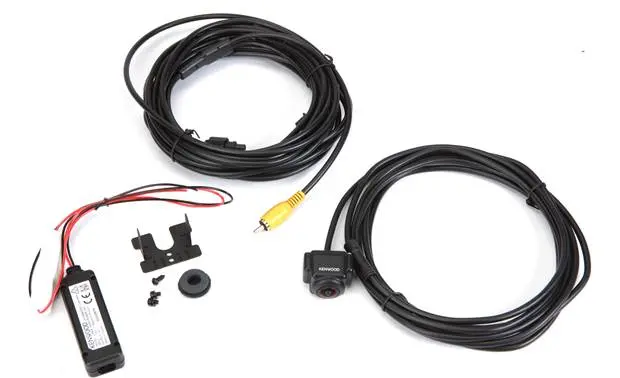

Kenwood CMOS-740HD – HD Rear Camera
High Definition Rearview Camera with Universal Mounting Hardware (Requires HD Cam Input), Compatible with DNX997XR, DDX9907XR, DMX957XR
High Definition View
Displaying the image in true 1280 x 720 (720P) High Definition on compatible with DNX997XR, DDX9907XR, and DMX957XR receivers.
HDR (High Dynamic Range)
— Reducing “Blown out Highlights” and “Crushed Blacks” —
HDR helps to reduce “blown out highlights” and “crushed blacks” and ensure clear images in challenging environments, including backlit scenes in daylight, streetlight scenes at night and places where light-dark contrast is particularly severe.
V & 24V Compatible
Cameras work with both 12V and 24V applications.
General Features
| Photographed Image | HD (1280 x 720) |
|---|---|
| Lens | Wide angle, focal length: 1.86mm F:2.0 |
| Frame Rate | 30fps |
| Angles of View | Horizontal 180°/ Vertical 103° |
| Operating Voltage | 12V/24V |
| Operating Tempreture | -22℉ to +185℉ / -30℃ to +85℃ |
| IPX | IP67 |
| Output | HD-TVI |
| Weight | 0.073lbs / 33.2g (without cable) |
| Dimensions (W x H x D) | 1-1/4″ x 15/16″ x 1″ / 31.1mm x23.0mm x25.2mm |
| Cable Length | |
| Camera Unit side | 9.84ft / 3m |
| DC Box Unit side | 19.69ft / 6m |
| Other | 1.64ft / 0.5m |
