Description

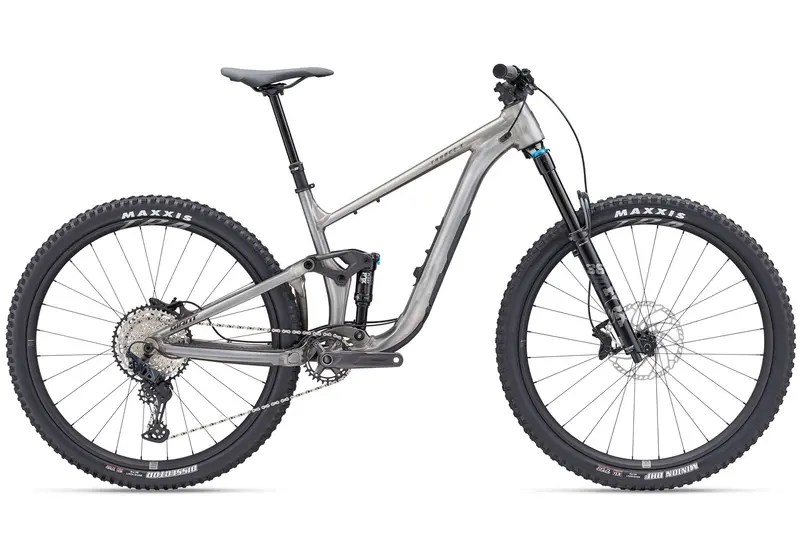

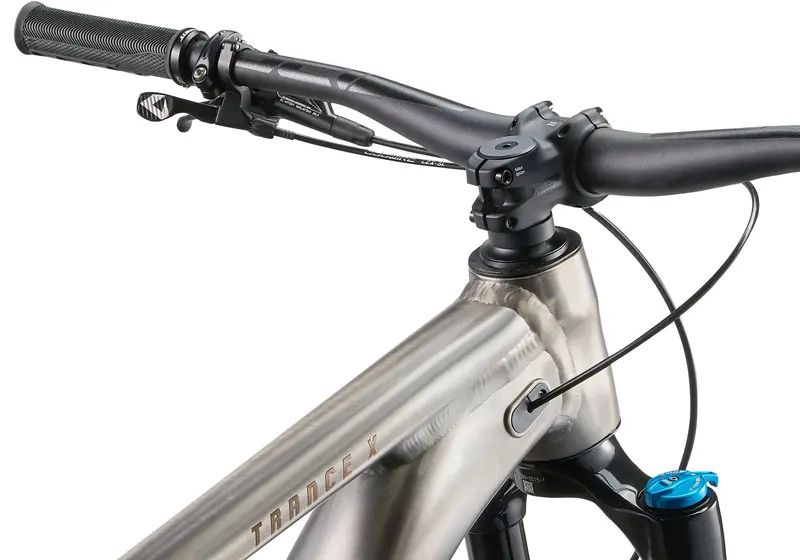

Find your flow on technical trails. With adjustable geometry, the option to change rear wheel size, and a new 140mm Maestro rear suspension setup, this versatile trail bike steamrolls singletrack with confidence and control. The all-new frameset is engineered with a super strong and lightweight ALUXX SL aluminium chassis and updated Maestro suspension system. With 140mm of rear travel and a 150mm fork, it gobbles up rocks, roots and ruts with ease. The frame is equipped with two, three-position flip chips for the ultimate in adjustability. The rear flip chip, located on the Maestro rocker arm, lets you change frame geometry and switch the standard 29-inch rear wheel to 27.5 if you prefer. A second flip chip at the headset provides 10mm of reach adjustment. New, integrated frame storage inside the down tube makes it easy to carry tools, snacks and other essentials. Mounts below the top tube offer an additional option for storage, and protection on the down tube prevents damage from trail debris and transportation.
- ALUXX SL-Grade aluminium frame front and rear triangles with 140mm travel
- Fox 36 Float Performance forks, GRIP damper, with 150mm travel

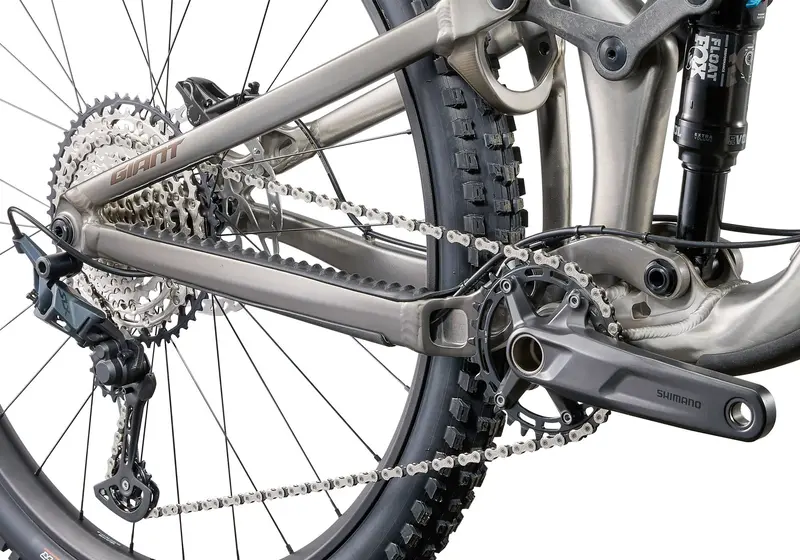

- Shimano SLX 1×12 speed drivetrain for durable, quality shift performance
- High performance Giant TRA wheelset
- Contact Switch AT dropper, remote seat post
- Shimano BR-MT520 hydraulic, four piston brakes with 203/180mm rotors for impressive stopping power
Sizing: (Rider Height)
Small: 163cm – 172cm
Medium: 171cm – 180cm
Large: 179cm – 188cm
X-Large: 187cm – 198cm
BIKE SPECSFRAME ALUXX SL-Grade Aluminium front and rear triangles, 140mm Maestro suspension, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip – Maestro 3, flip chip – headset, integrated down tube storage FORK Fox 36 Float Performance, 150mm, GRIP damper, 15×110 Kabolt X, 44mm offset REAR SHOCK Fox Float Performance, 185/52.5, custom tuned for Giantt HUBS [F] Giant MTB alloy, six-bolt [R] Giant MTB alloy, 72t POE (Points of Engagement), six-bolt, MicroSpline driver body SPOKES Sapim, 28, straight pull, DBL Technology RIMS Giant TRA WheelSystem, 6069 alloy, hookless, 30mm inner width, 40mm outer width, 21mm height, Wide Guard Technology TYRES [F] Maxxis Minion DHF, 29×2.5 WT, 60 tpi, EXO, TR [R] Maxxis Dissector 29×2.4 WT, 60 tpi, EXO TR, tubeless CRANKSET Shimano MT512-1, 30t, 55mm chainline BOTTOM BRACKET Shimano Press Fit SHIFT LEVERS Shimano SLX M-7100, I-Spec EV, 1×12 DERAILLEURS Rear: Shimano SLX M-7100, Shadow + CASSETTE Shimano SLX M7100, 10×51 12 speed CHAIN KMC X-12 BRAKES Shimano BR-MT520, hydraulic, four piston, Shimano RT-66 rotors [F]203mm, [R]180mm HANDLEBARS Giant Contact TR35, alloy, 35mm STEM Giant Contact SL 35 SADDLE Giant Romero SEATPOST Contact Switch AT dropper, remote PEDALS N/A EXTRAS Tubeless prepared, 2.5″ max tyre size, 34t max chainring size, 3M tailgate protector, down tube and chainstay protection |
* Specifications are subject to change without notice
