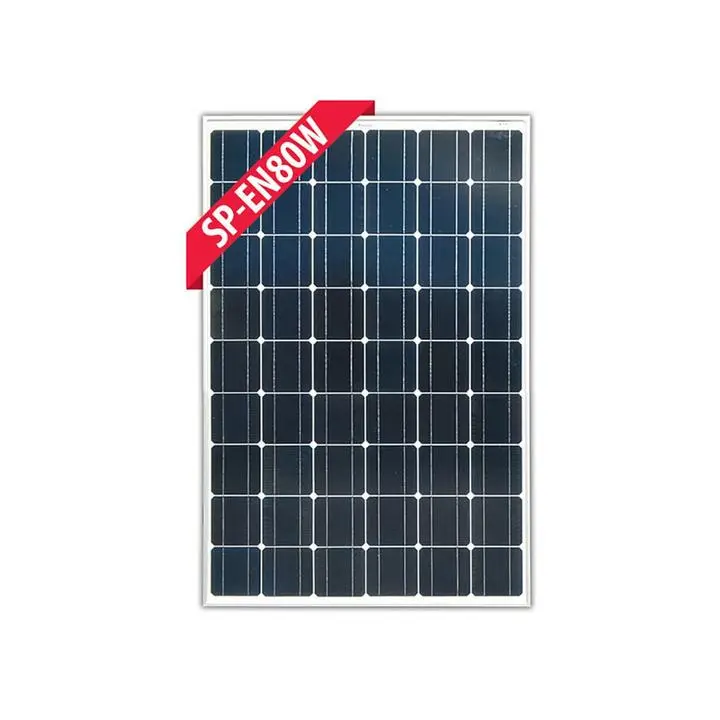

Enerdrive 80W Fixed Mono Solar Panel (Silver Frame)

Enerdrive 80W Fixed Mono Solar Panel (Silver Frame). A 80W monocrystalline solar panel with a silver frame, are typically around 20+VDC open circuit and are well suited to 12V installations (or 24V by series connections of panels). A fly lead cable is provided for easy connection of the 10 & 20W panels while the larger panels have MC4 compatible solar cable connectors included. Enjoy moments that matter with a peace of mind, with Enerdrive | Dometic to keep you connected and powered, no matter where your journey takes you.

Specifications:

• Max Power Pm(W): 80.
• Power Tolerance %: – 1% ∼ + 3%.
• Max Power Voltage Vm(V): 17.50.
• Max Power Current Im(A): 4.58.
• Open Circuit Voltage Voc(V): 22.40.
• Short Circuit Current Isc(A): 5.10.
• Max System Voltage (VDC): 1000.
• Test Conditions: 1000W/m² , AM1.5 , 25°C.
• Silver frame.

Note: Specifications subject to change without notice.

Dimensions:

• Dimensions (mm): 780 x 676 x 35.
• Weight (kg): 7.9.
