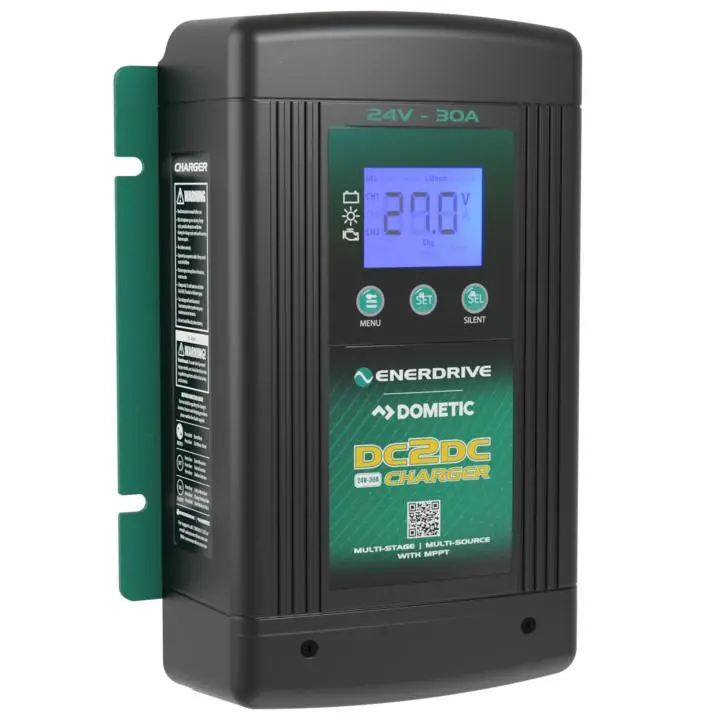

Enerdrive 24V 30A DC2DC Battery Charger

Enerdrive 24V 30A DC2DC Battery Charger. A automatic battery charger that can charge from either alternator linked to a battery or via solar power with built-in Maximum Power Point Tracking (MPTT) Solar Controller. Enjoy moments that matter with a peace of mind, with Enerdrive | Dometic to keep you connected and powered, no matter where your journey takes you.

Features:

• Two totally independent DC Inputs for both engine and solar. regulation charging one house battery bank output.
• DC M6 screw terminals that will allow for large battery cable connection between all sources.
• A dedicated Maximum Power Point (MPPT) solar regulator.
• The same battery algorithms as included in our AC mains battery charger including a specific lithium charging profile.
• 30A output up to 40+°C with thermo controlled fan cooling.
• Fully programmable LCD display to show which source is charging the battery along with charger status, voltage and amperage.
• Temperature sensor included with charger for more accurate battery charging.
• 5 year warranty.

Specifications:

• Output Rating:
  • Output Voltage: 24V Nominal (17.0V min).
  • Output Current (Maximum): 30A.
  • Output Power: 865W.
• Charger DC Output (CH1):
  • Selectable Battery Type: Gel, AGM, Flooded, Lithium, Program.
  • Charger Voltage Range: 27.6V – 31.0V.
  • Float Voltage Range: 26.0V – 27.6V.
  • Charger Current (User Selectable): 5 / 10 / 20 / 30A (default 30A).
  • Equalize Voltage (Flooded Battery): 31.0V.
  • Equalize Charging Current: 10% of Bulk Current Setting.
  • Charging Control: 2 stage / 3 stage selectable (Default 3 Stage).
  • DC Output Bank: Single.
  • Current draw from CH1 when not operating: ≤50 mA.
  • Battery Temperature Setting: Low/ Normal/ High (Battery Temperature Sensor Standard).
  • Efficiency: 95%.
• Input Rating (CH2 – MPPT Solar):
  • Input Voltage: 14.5 – 45VOC.
  • Maximum Solar Input: ≤23V input, 500W (600W allowable), ≥37.5V-45V input, 800W (1000W allowable).
• Input Rating (CH3 – Start/Alternator):
  • Input Voltage: 10.5 – 16VDC / 21 – 32VDC.
• Note: Specifications subject to change without notice.

Dimensions:

• Dimensions (mm): 242 (H)x 172 (W)x 74 (D).
• Weight (kg): 1.85.
