Description

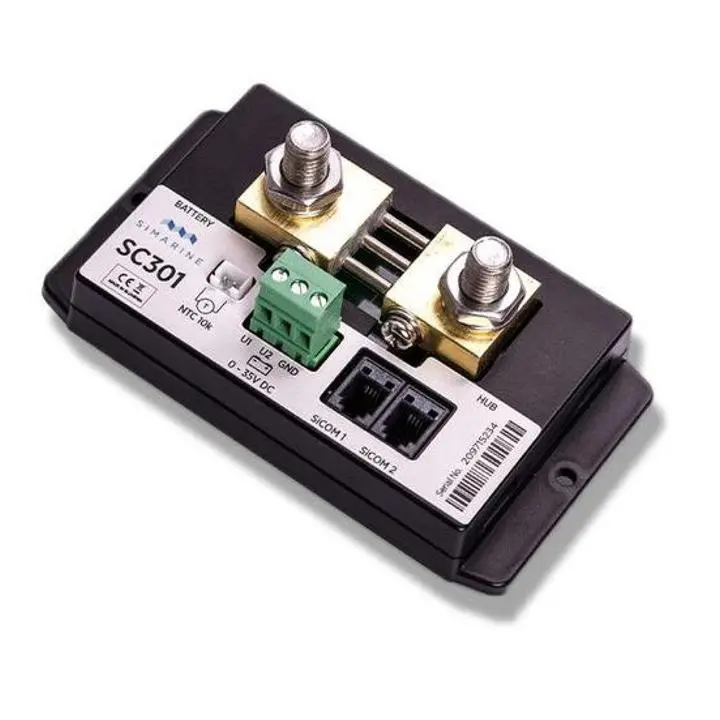

Active shunt for PICO battery monitor with 1x voltage, 1x temperature and 1x current sensor up to 300A. For up to 75V systems.
It can be used for monitoring current draw of heavy consumers like inverters, bow and stern thrusters and anchor winches and current generators like shore power chargers and solar panels.
| TECHNICAL INFORMATION | |
| Operating | |
| Power source voltage range | 6 – 35 V |
| Temparature range | -20 – +70 °C |
| Power consumption at 12 V | |
| Operating | 0.8 mA |
| Current measuring range | |
| Per channel | 0,1 – 320 A |
| Accuracy | ± 0,6 % |
| Resolution | 0,01 A |
| Sampling rate | 100 ms |
| Maximal current | |
| Continuous | 300 A |
| Peak current (<1 min) | 400 A |
| Peak current (<5 min) | 700 A |
| Voltage drop at 300 A | 50 mV |
| Maximal voltage on connections | 35 V |
| Voltage inputs | |
| Range | 0 – 75 V |
| Resolution | 1 mV |
| Accuracy | ± 0,2 % |
| Sampling rate | 100 ms |
| Resistance inputs | |
| Range | -15 – +80 °C |
| Accuracy (-10 – 60 °C, 14 – 140 °F) | ± 3,0% |
| Temparature sensor – NTC 10k | |
| Range | -15 – +80 °C |
| Accuracy (-10 – 60 °C, 14 – 140 °F) | ± 3,0% |
| Connectivity | Up to |
| Batteries | 1 |
| Temparature sensors | 1 |
| Voltage sensors” | |
