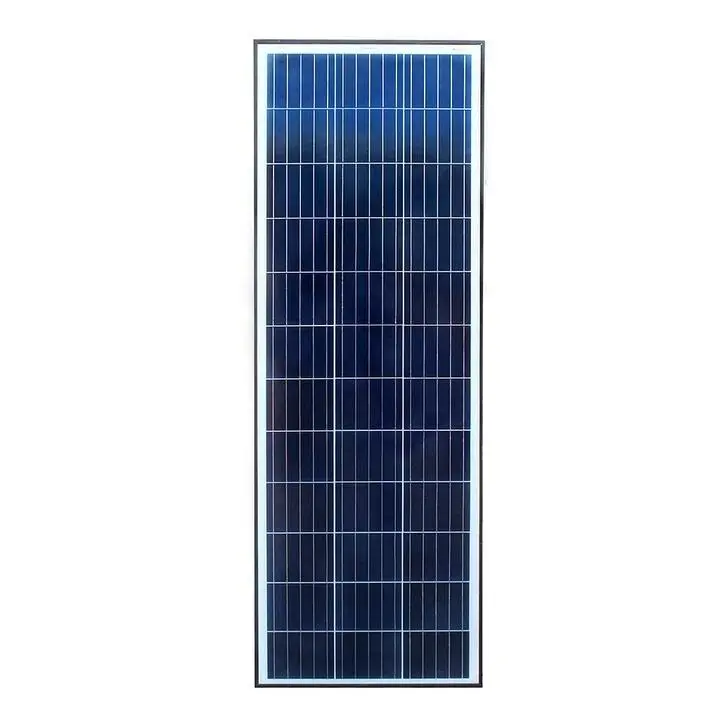

Enerdrive 120W Fixed Poly Solar Panel (Black Frame)

Enerdrive 120W Fixed Poly Solar Panel (Black Frame). A 120W polycrystalline solar panel with a black frame, are 20+VDC open circuit and are well suited to 12V installations (or 24V by series connections of panels). A fly lead cable is provided for easy connection of the 10 & 20W panels while the larger panels have MC4 compatible solar cable connectors included. Enjoy moments that matter with a peace of mind, with Enerdrive | Dometic to keep you connected and powered, no matter where your journey takes you.

Specifications:

• Max Power Pm(W): 120.
• Power Tolerance %: – 1% ∼ + 3%.
• Max Power Voltage Vm(V): 18.4.
• Max Power Current Im(A): 6.53.
• Open Circuit Voltage Voc(V): 22.8.
• Short Circuit Current Isc(A): 7.23.
• Max System Voltage (VDC): 1000.
• Test Conditions: 1000W/m² , AM1.5 , 25°C.
• Black frame.

Note: Specifications subject to change without notice.

Dimensions:

• Dimensions (mm): 1578 x 541 x 35.
• Weight (kg): 11.
