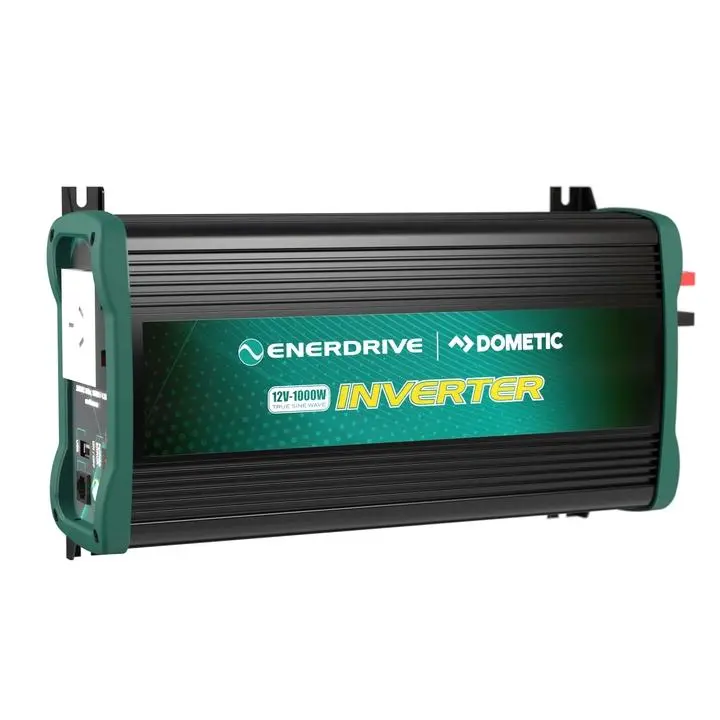

Enerdrive 1000W 12V True Sine Wave Inverter

Enerdrive 1000W 12V True Sine Wave Inverter. A true sine wave inverter to deliver power to sensitive equipment, as a reliable AC power and 5V USB source for your home, boat, caravan, 4WD or commercial vehicle. A true sine wave inverter minimises the risk of damaging sensitive equipment you need on the road. Enjoy moments that matter with a peace of mind, with Enerdrive | Dometic to keep you connected and powered, no matter where your journey takes you.

Features:

• Australian GPO outlets.
• True Sine Wave output is ideal for operating motor loads, and to reduce stress on surge protection circuitry, meaning potentially longer equipment life.
• Audio alarm with warning/error codes to alert user to check inverter condition before unit shutdown.
• Automatic shutdown protects overload, over temperature and low/high battery conditions.
• High surge capacity for products that require more power to start (2x constant).
• High efficiency conversion of battery available power to AC power.
• Mounting brackets for permanent installation.
• Heavy duty DC battery stud connectors.
• Includes 5V USB port.
• 6m remote on/off switch included.

Specifications:

• AC Output Power: 1000W.
• AC Output Current: 4.3A.
• AC Output Voltage: 230 Vac / 50 Hz.
• AC Output Waveform: True Sinewave.
• AC Output Socket: 1 outlet.
• Nominal DC Input Voltage: 12.5 VDC.
• No Load battery draw: <1.2 ADC.
• DC Input Voltage operating range: 10.5 – 15.5 VDC.
• Under Voltage Alarm: 11.2 VDC.
• Under Voltage Shutdown: 10.5 VDC.
• Under Voltage Recovery: 11.8 VDC.
• Over Voltage Shutdown: 15.5 VDC.
• USB: 5V, 2.1A.
• Safety and Environmental:
  • Conformance: All required Australian Standards.
  • Agency Markings: RCM.
  • Operating Temperature: 0°C to 40°C.
  • Storage Temperature: -20°C to 60°C.
  • Relative Humidity: 5-90% noncondensing.
  • Operating Altitude: Up to 3000 meters above sea level.
• 5 year warranty.

Note: Specifications subject to change without notice.

Dimensions:

• Dimensions (mm): 177 (W)x 325 (L)x 90 (H).
• Weight (kg): 2.9.
