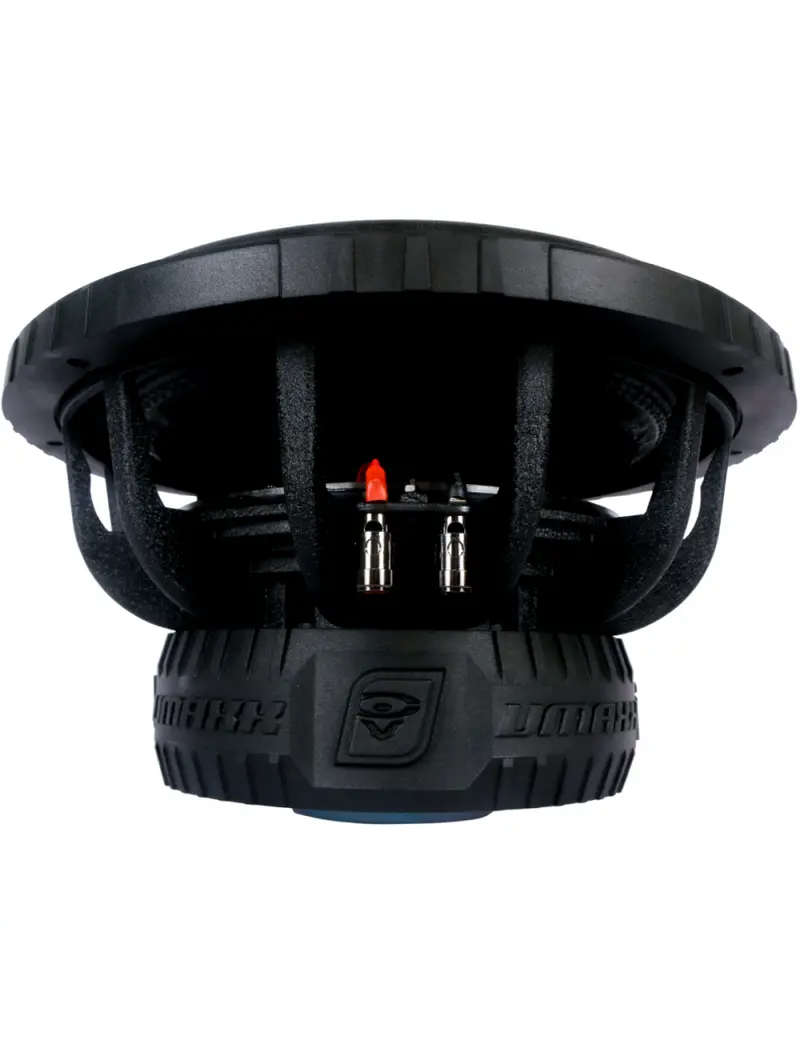

Cerwin Vega VMAX15D4 15″ 3000W Peak Dual 4-Ohm High-Output Subwoofer

Description

Cerwin Vega 15″ Subwoofer VMAXX SERIES 4 OHM DVC Subwoofer 3000W MAX

This listing is for:
1 x Cerwin Vega 15″ Subwoofer VMAXX SERIES 4 OHM DVC Subwoofer 3000W MAX

Features:

• Heavy Industrial Strength Aluminum Cast Frame
• Treated Semi-Pressed Pulped Cone
• Elevated Motor Structure For Increased Cooling
• Oversized Spider
• Black Coated 3 inch Voice Coil for Higher Thermal Capability
• Oversized Polished Black Chrome Terminals
• Shorting Ring for lower Distortion
• Polished Bumped Backplate
• Klippel Optimized Motor/Suspension Symmetry

Specifications

• More Information

  Model	VMAX15D4
  Parameter (Unit)	VMAX15D4
  SPL (db)	86.6
  Re (Ω)[series]	2Ω/8Ω
  Qms	3.98
  Qes	1.005
  Qts	0.803
  Fs-Free Air Resonance (Hz)	31.48
  Vas.Cu.ft. (Liter)	94.907
  Cms (mm/N)	97.11
  Mms (g)	317.7
  Sd (m²)	0.083
  BL (T*M)	19.3
  Xmax – Inch(mm)	14
  Pwr (W) NOM/MAX	1500/3000
  Displacement (ft3/L)	0.15 ft3” (4.24L)
  Mounting Depth	7.48” (190) in. (mm)
  Mounting Diameter (inch/mm)	13.98” (355) in. (mm)
  Screw Hole Diameter	0.26” (6.5) in. (mm)
  Total Diameter	15.95” (405) in. (mm)
