Description

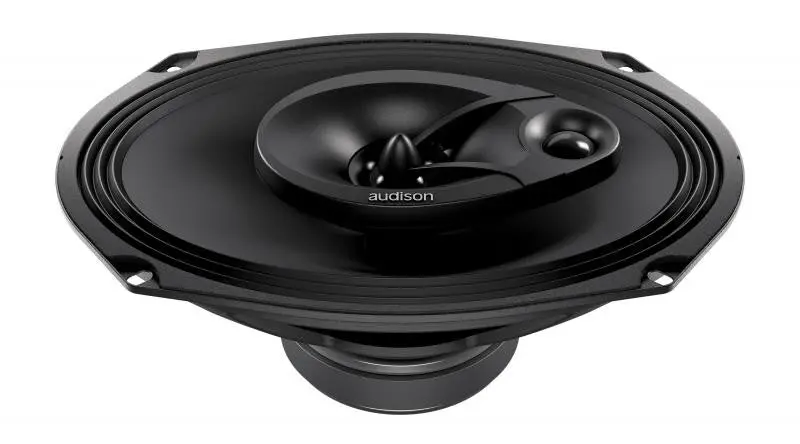

The APX 690 featuring an exclusive 40 mm horn loading dome tweeter that contributes to maximize efficiency up to 96dB SPL and an acoustics lens specifically designed and applied to the tweeter to increase dispersion in high frequency range.
To strengthen the emission of very high frequency ranges otherwise affected by off-axis positioning compared to the listening point, the APX 690 featuring a supertweeter.
Technical Data
| Comp | Tree way coaxial |
| Size | Woofer (6″ x 9″) Tweeter diaphragm 40 mm (1,58″) Super Tweeter diaphragm 15 mm (0,6″) |
| Power Handling | 100 W Continuous Power 300 W Peak Power |
| Impedance | 4 Ω |
| Frequency Response | 40 ÷ 23k Hz |
| Sensitivity | 96 dB/Spl |
| Magnet | High density flux ferrite |
| Dome | Water-repellent pressed paper |
