Description

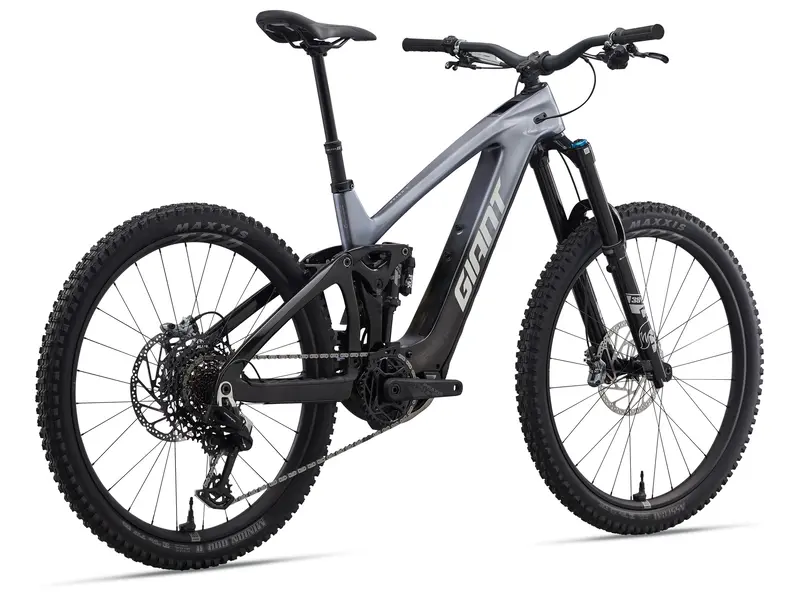

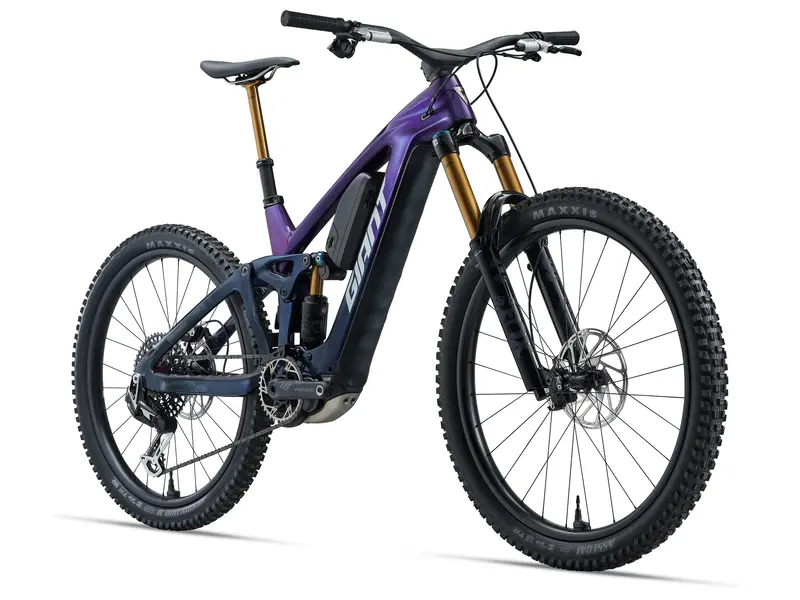

Everything about the new Reign Advanced E+ is designed to make it the best descending E-MTB ever. From the bottomless feeling Maestro suspension with 170mm of rear travel (and a 180mm fork) to the punchy new SyncDrive Pro 3 motor and its lightweight, stiff and ultra-adjustable composite frame. Giant added a titanium skid plate, robust frame protection, and an innovative bash-guard with an elastomer damper—so you can send it with confidence on the most rugged, technical terrain.
DOMINANT ON DESCENTS
Featuring a modified Maestro suspension system with a new integrated lower link and 170mm of rear travel paired with a 180mm fork, this is best descending E-bike ever from Giant. Maestro’s floating pivot design means it’s always active and efficient under pedalling. Its progressive leverage curve makes the rear shock is easy to compress at the top of the stroke and super-supportive near the end range, producing a plush, bottomless feel that uses every bit of its travel. The result is unmatched confidence and control for big hits, steep drops and technical rock gardens.
LIGHTWEIGHT YET POWERFUL
Upgrading from a 36-volt to 48-volt system results in better performance with reduced heat and energy loss. With 90Nm of torque and 800 watts of peak power, the new SyncDrive Pro 3 motor lets you sustain a high torque level, even at higher pedalling cadences—so you feel powerful, consistent support in any riding situation The added power combined with a lighter composite frame and overall weight of just 22.3kg (size medium) means the Reign E+ Advanced packs a punch when you need it most. And the 48-volt system also produces less stress on the EnergyPak 560 battery, which has a nearly endless lifespan of up to 2300 charge cycles.
PREMIUM PROTECTION

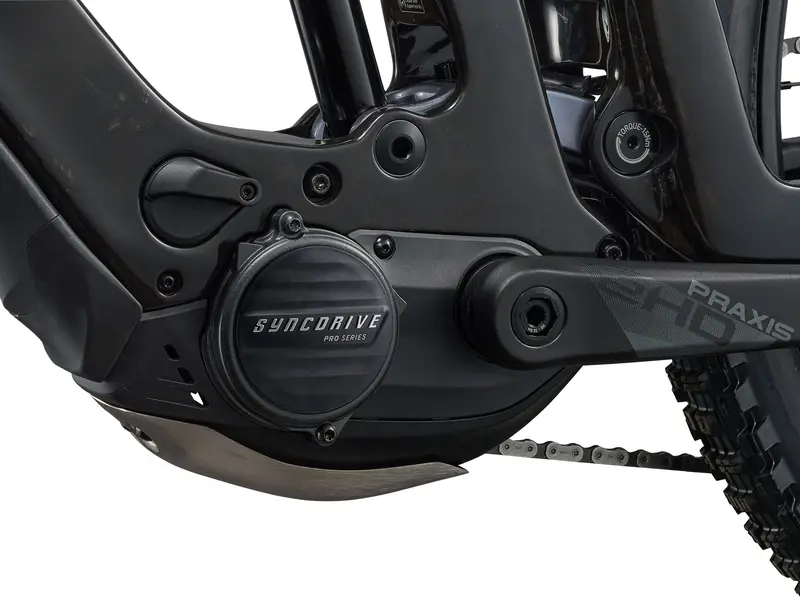

Designed to shred hard and take a beating, the Reign Advanced E+ features a tough, dual-density battery cover that doubles as a full-length protector on the underside of the down tube—perfect for chairlifts, trailers or pickup truck shuttles. A new integrated skid plate protects the motor with corrosion resistant titanium that’s twice as strong as aluminium. And with less friction, the skid plate also helps keep you from getting hung up on rocks, roots, or other obstacles. Finally, a unique MRP active bash-guard, with an elastomer damper and suspended design, gives you unmatched chain and chainring protection.
RANGE
How far can I expect to ride on a single battery charge?
The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tyre pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.
Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.
Extreme: 45km | Good: 90km | Ideal: 160km
Unisex Size Chart
| Size | Rider Height |
| Small | 163-174cm |
| Medium | 171-182cm |
| Large | 179-190cm |
| X-Large | 187-198cm |

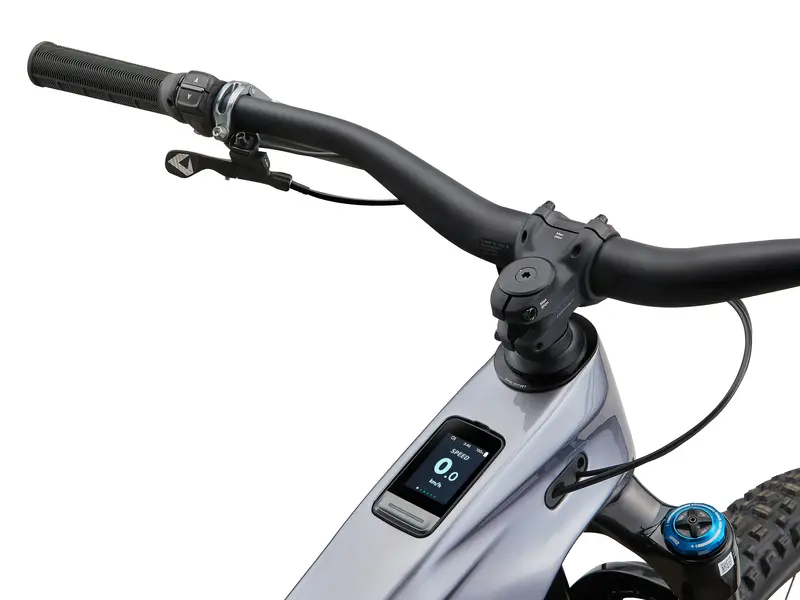

BIKE SPECSFrame Advanced-grade composite, Advanced Forged Composite Upper Rocker, 170mm Maestro suspension system, flip chip, UDH hanger 12x148mm thru-axle Fork Fox 38 Performance Elite E-Tuned, 180mm travel, 44mm offset, GRIP X2 damper, Boost Kabolt-X 110x15mm Rear Shock Fox Float X Performance, EVOL Large Volume sleeve, 2 position lever, custom tuned Motor Giant SyncDrive Pro 3, 48v, 90Nm, 800W max power, powered by Yamaha Controller RideControl Ergo 4, grip integrated Display RideControl GO LUX, frame integrated LED display ANT+ Battery EnergyPak Smart 560Wh, EnergyPak Plus 280 range extender compatible Charger Giant EnergyPak smart charger 4A, 48V Handlebars Giant Contact Enduro, 35mm rise Stem Giant Contact SL 35mm S:40mm, M:40mm, L:40mm, XL:40mm Saddle Giant Romero Seatpost Giant Contact Switch travel-adjustable dropper, remote Grips Giant Tactal Pro-E, single lock-on Brakes TRP DH-R EVO DH, hydraulic, TRP rotors [F]220mm, [R]220mm Shift Levers SRAM Eagle 90, 1×12 speed Rear Derailleur SRAM Eagle 90 T-Type Cassette SRAM XS-1270, T-Type 10x52T 12 speed Chain SRAM Eagle 70 T-Type Crankset Praxis e-HD crank arms Praxis Cold Forged 4130 premium steel 36T chain ring Pedals N/A Wheels Rims: Giant E-TRA Hookless Tubeless ready Alloy 29″ [F] 27.5″ [R] 30mm inner width. Hubs: Giant E-TRX MTB Alloy Hub, 6 Bolt, 110×15 [F] / 148×12 SRAM XD Drive Body Pawl Driver (6 Pawl 72T) Thru-axle [R]. Spokes: Sapim Laser, e-bike optimised Tyres Maxxis Assagai 29×2.5″ foldable, Tubeless, EXO+, 3C MaxxGrip [F] Maxxis Minion DHR II 27.5×2.4″ foldable, Tubeless, DoubleDown, 3C MaxxGrip Compound [R] Extras Tyre Pressure Management System, Torx 25 Battery Lock with built-in Torque limiter, Tubeless kit (liquid, valves, levers, manual, tool), MRP E-Amg, custom bashguard with integrated damping design |
- Specifications are subject to change without notice
